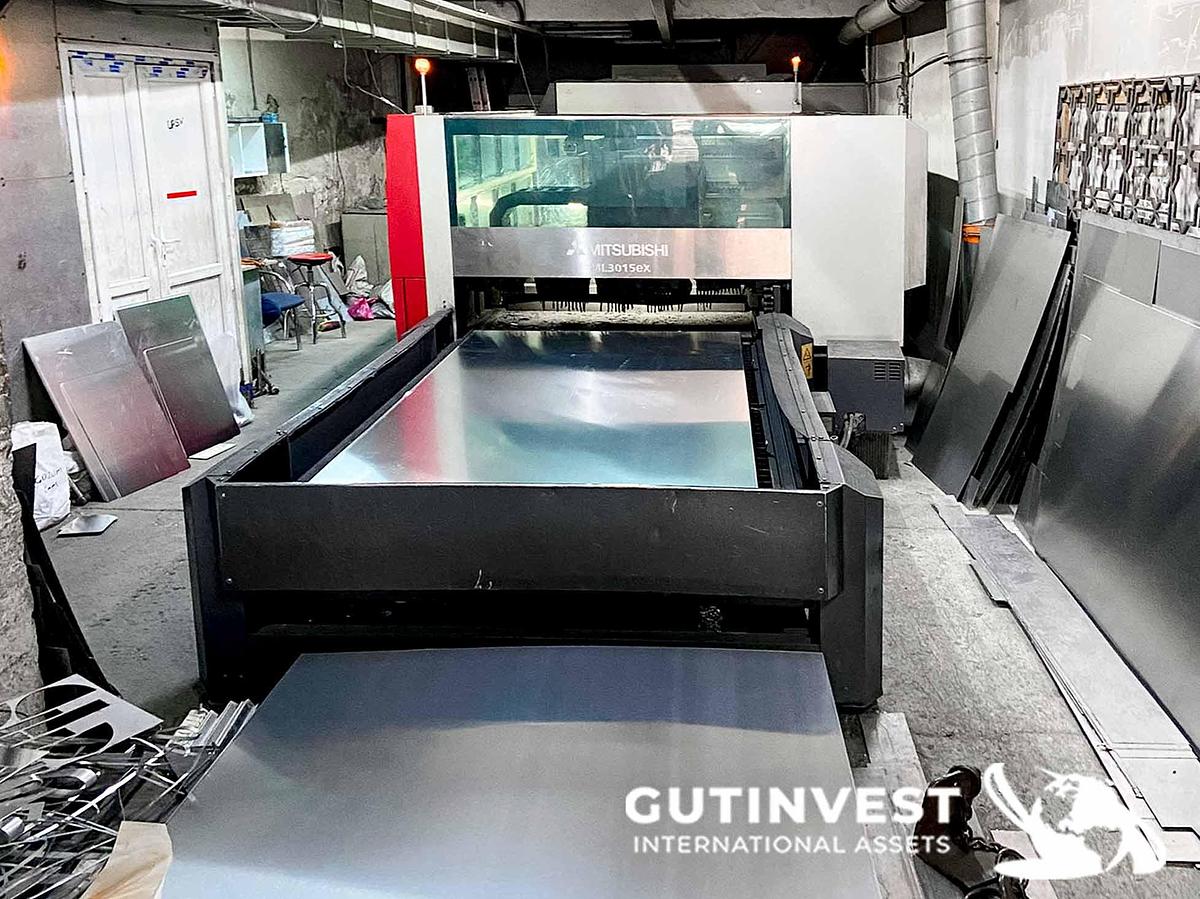

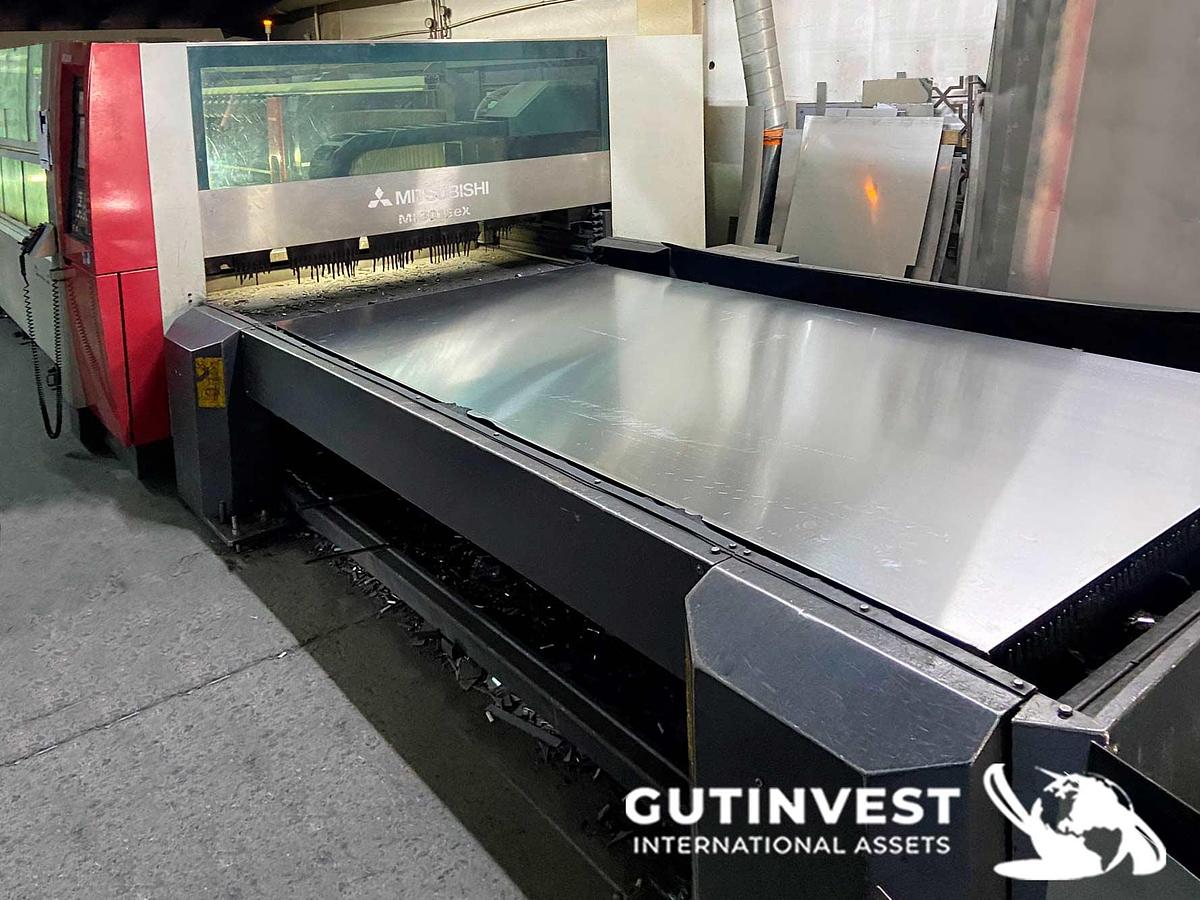

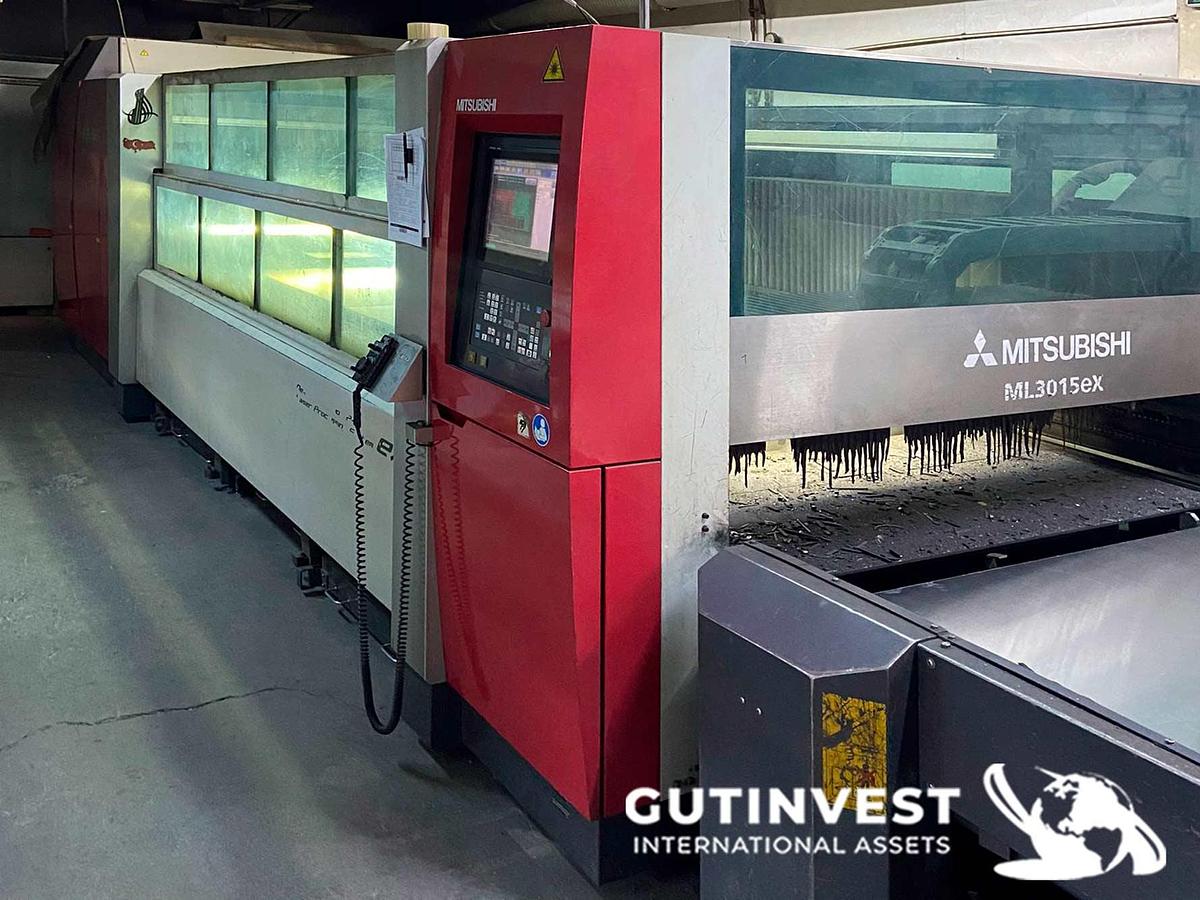

1 - CO2 laser cutting machine

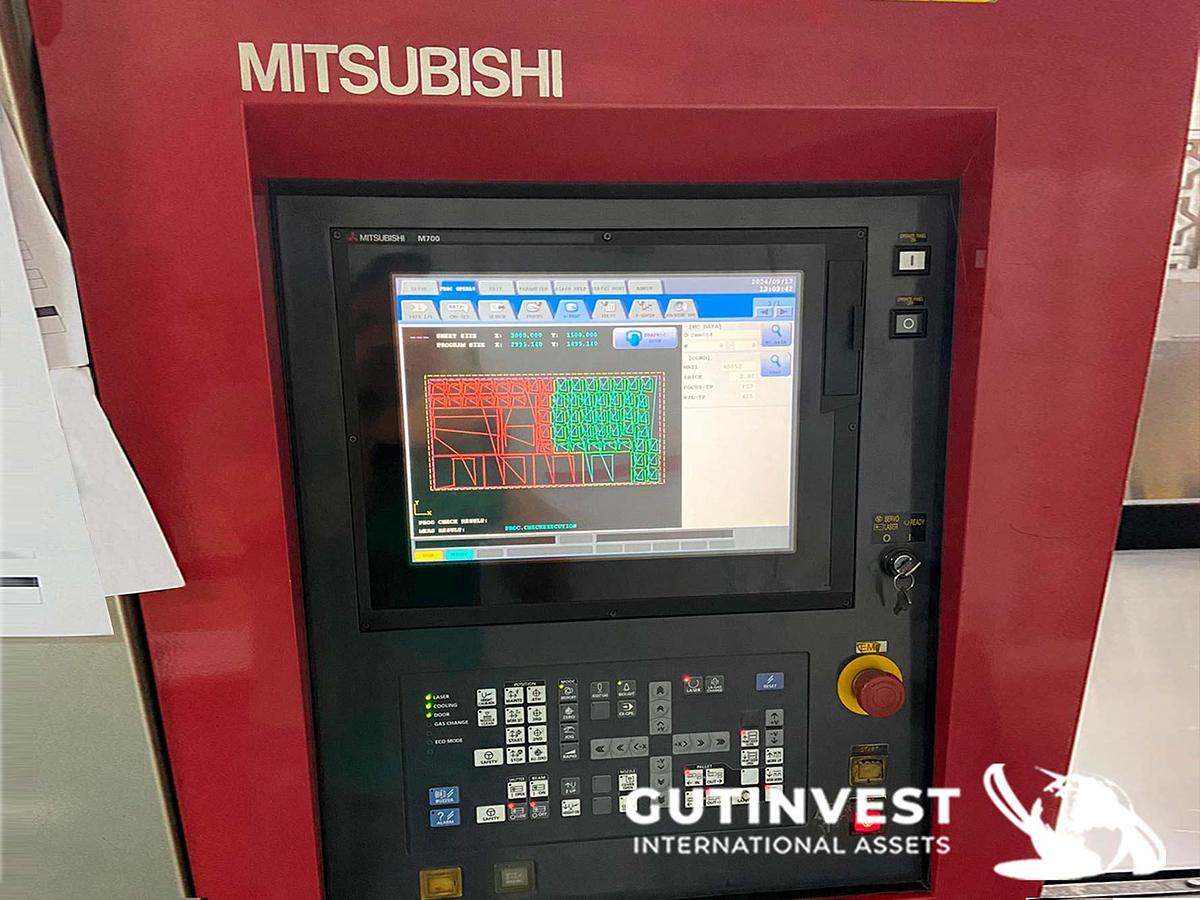

CO2 laser cutting machine Switch opening time: 35.900 hour , laser cutting time: 20.148 hour. Workpiece size 3050 x 1525 mm / max weight 950 kg Automatic pallet change LOAD MASTER loader Cutting Thickness: - 10mm aluminum nitrogen (weather) Maximum feed 50m / munite 7,5 inç (2x) 7,5 inç auto focus head Automatic edge/plate detection (auto rotation) Mitsubishi 4500 Watt cross flow resonator (peak power of 5000W pulse) CO2 lazer CO2 / CO / N2 / He = 8/4/60/28 Laser gas consumption 3 liters / hour Double cut function allows surface removal and cutting on poor quality materials and shielded sheet metal Edge punching function Control of slag reduction in corners Retraction of the head with the normal, cross and arc method 90% energy saving in standby mode air cooled chiller Fume extractor High pressure gas unit Mitsubishi LC 30Bx CNC controller with 15 inch TFT touch screen, 20 GB hard drive, USB and ethernet Barcode reader POWER SOURCE Job Lifter Dianite cast iron machine frame Trafo Power supply 3PH, 415V, 109Kva
