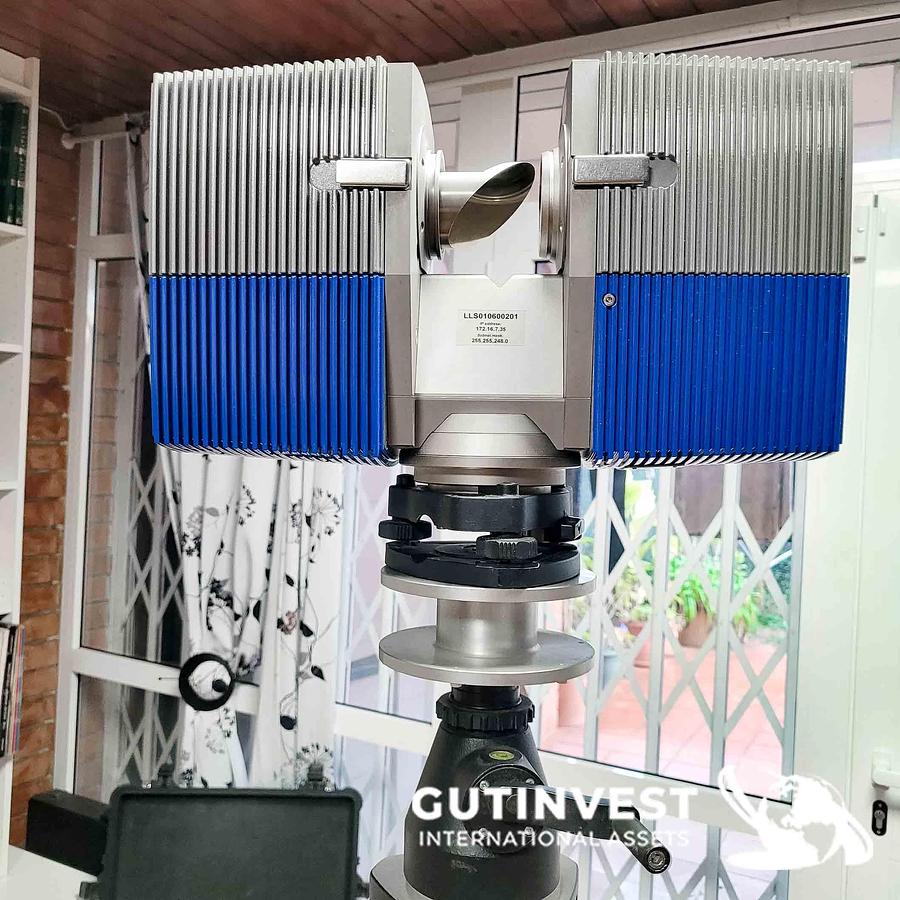

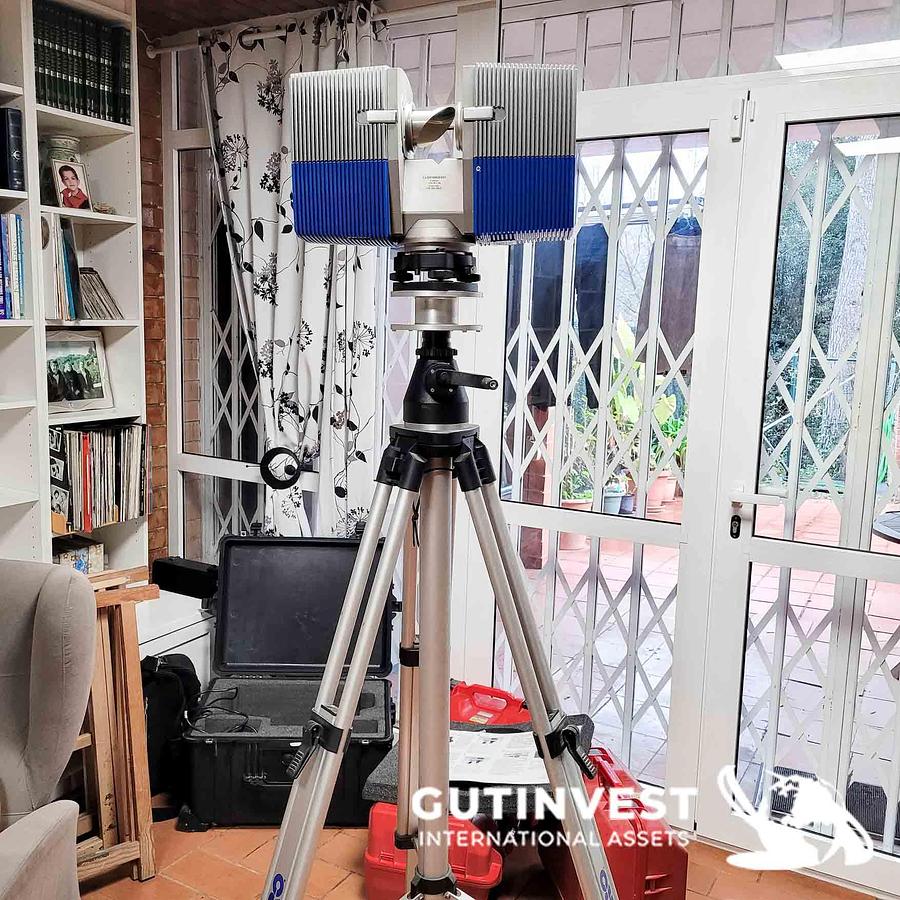

Phase laser scanner

Phase laser scanner. Power supply: 24 V (battery or current) Power consumption: ~60 W Ambient temperature: 5°- 40°C Humidity: non-condensing Tilt sensor: yes (accuracy 0.01°; resolution 0.00 1°; range ±15°) Weight: 14.5 kg Dimensions: 400 mm. x 160 mm. x 280 mm Geographical reference system: compatible with total-GPS station Cable connection: on the fixed foot Control panel:  yes (scanning without external computer possible) Telemetry unit: 76 m ¹ Resolution: 17 bits distance / 9 bits intensity Measurement rate: 120 kHz Measurement uncertainty: 3 mm in 25 m ² Vertical rotation: 320°. Horizontal rotation: 360°. Vertical resolution: 0.009° (40,000 dots at 320°). Horizontal resolution: 0.00076°(470,000 dots in 360°). Max. vertical rotation: 3000 rpm. Duration with 4450x2500 horizontal and vertical measuring points: ~104 sec. Laser power (CW): 22 mW Wavelength: 785 nm Beam divergence: 0.25 mrad (0.014°) Initial beam diameter: 3 mm, circular
