Plastic Injection Molding Machine - 120 tons

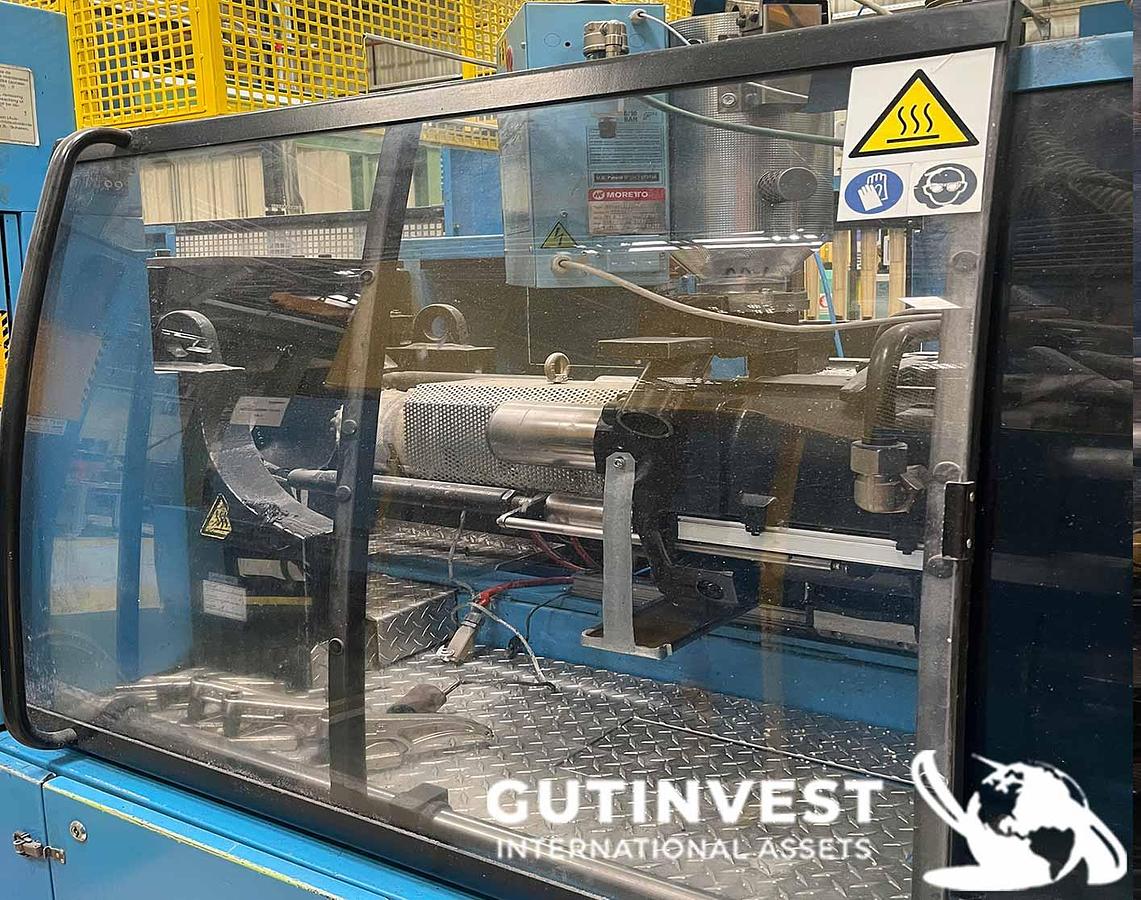

Plastic Injection Molding Machine - 120 tons The Engel FC 330/120 Power is a 120-ton hydraulic injection molding machine designed for demanding industrial production. It offers high clamping force, high precision during the injection phase, and a robust structure that accommodates larger molds while maintaining excellent process repeatability. General information Clamping unit Feature Value Clamping force 120 tons Maximum opening stroke 500 mm Maximum ejection stroke 130 mm Minimum mold height 300 mm Centering ring 125 mm Platen size 730 × 600 mm Injection unit Feature Value Screw Ø35 mm Maximum injection volume 154 cm³ Injection stroke 160 mm Injection speed 160 mm/s Rotation speed 440 rpm Maximum pressure 1,580 bar Maximum temperature 450 °C Hydraulic system Approximate weight 7,300 kg
