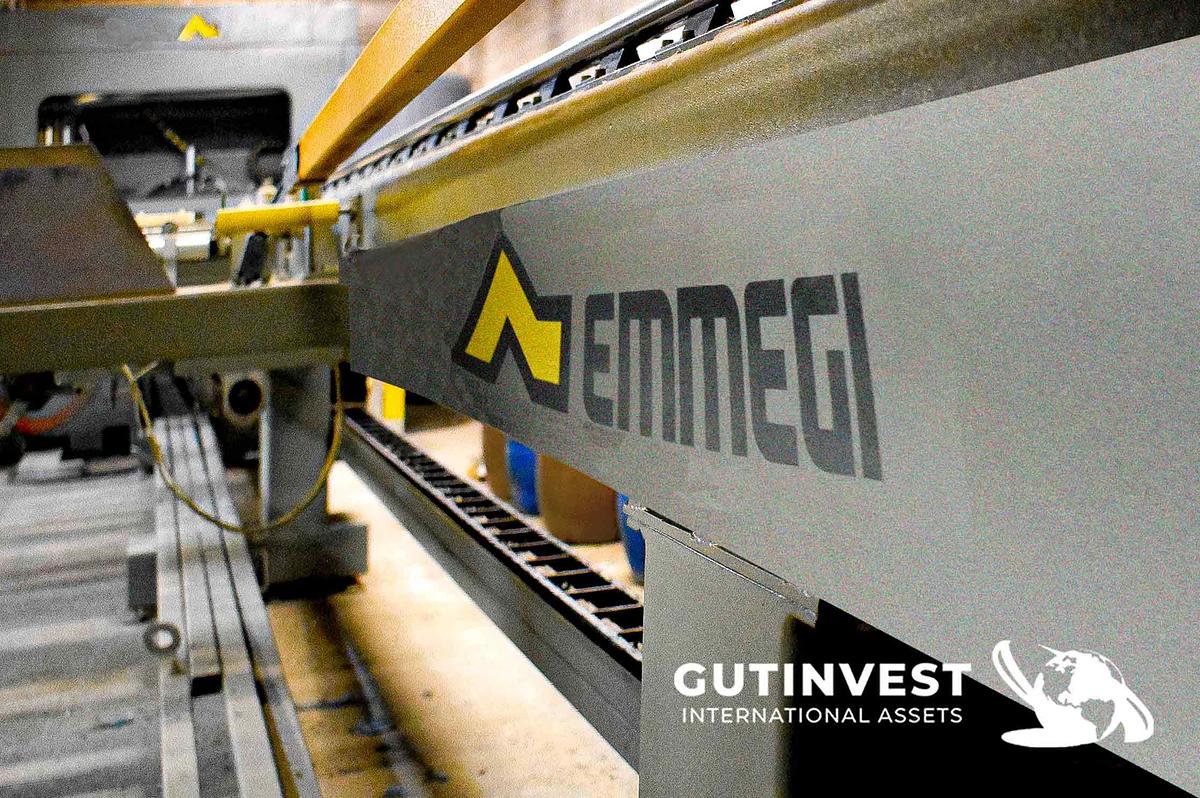

1 - CNC machining and cutting center - 6 axes
Sold
1 - CNC machining and cutting center - 6 axes
Location:
Description
CNC machining and cutting center - 6 axes.
Composed of:
· Warehouse load bars: maximum length: 7.500mm.
· Bar positioning unit: carriage travel speed: 0-60m/min.
· Milling unit: Electromandrel power: 4.5kW.
Rotation speed: 20,000-28,000rev/min, tool cone: ISO 25.
X-axis stroke - longitudinal: 240mm, transverse Y-axis stroke: 350mm, Z-axis stroke - vertical: 350mm, U-axis stroke - longitudinal Pusher: 9,500mm, A-axis stroke - tesselle rotation: 360º.
· Cutting unit: blade diameter: 550mm, cutting angles: electronically variable between 22.5º and 157.5º. Total power: 35kW.
Specifications
| Manufacturer | EMMEGI |
| Model | QUADRA 2 |
| Year | 1998 |
| Condition | Used |
| Online Auctions | 2023-01-19 16:00:00 |
| Dimensions bars Min.- Max. | 800-7,500mm. |
| Working hours | 5.500 hours. |
| Lload capacity with step 100mm | 20 bars. |
| Load capacity with step 200mm | 10 bars. |
| Maximum load weight | 500Kg. |
| Length min. -max. Bars | 500-7500mm. |
| Motor power | 1.9kW. |
| Total weight complete line | 8.700Kg. |
