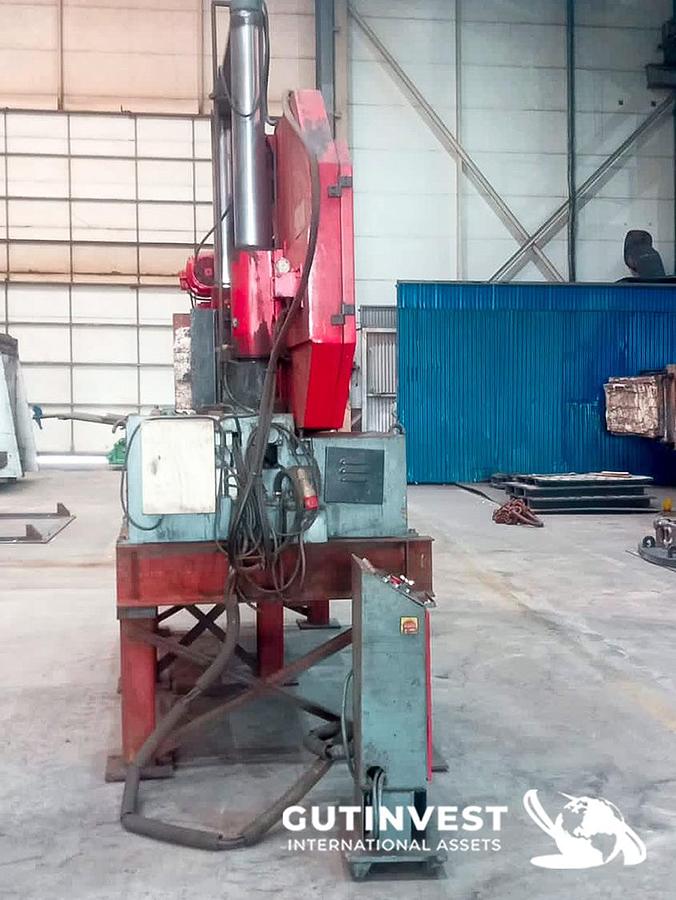

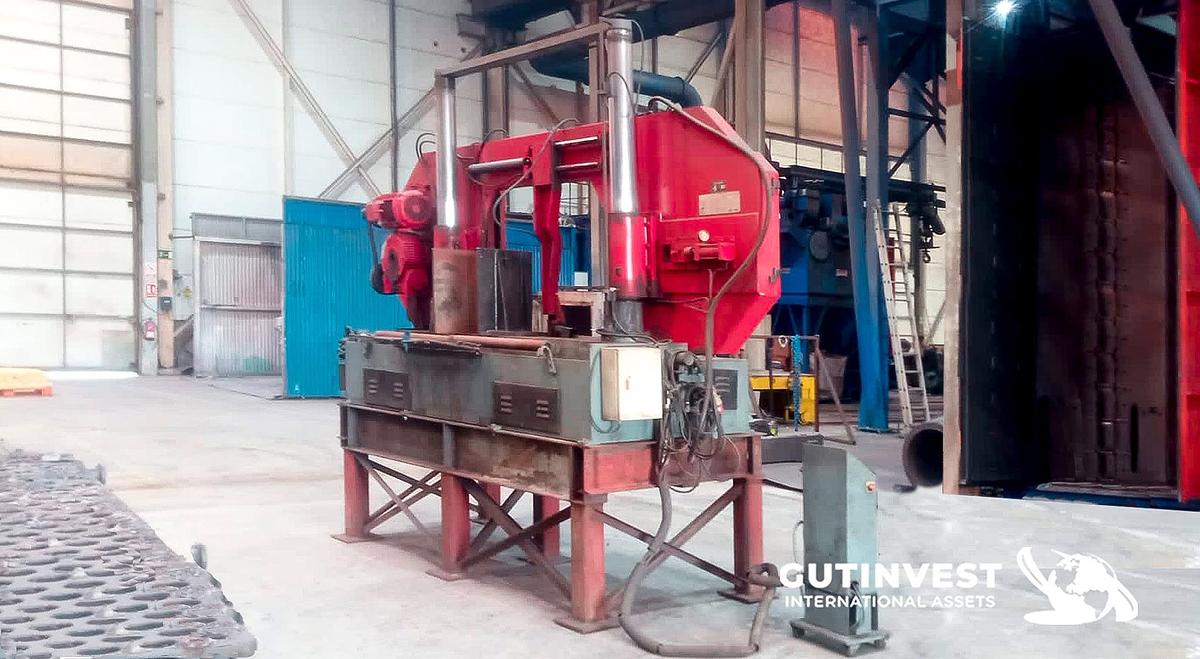

1 - Band sawing machine

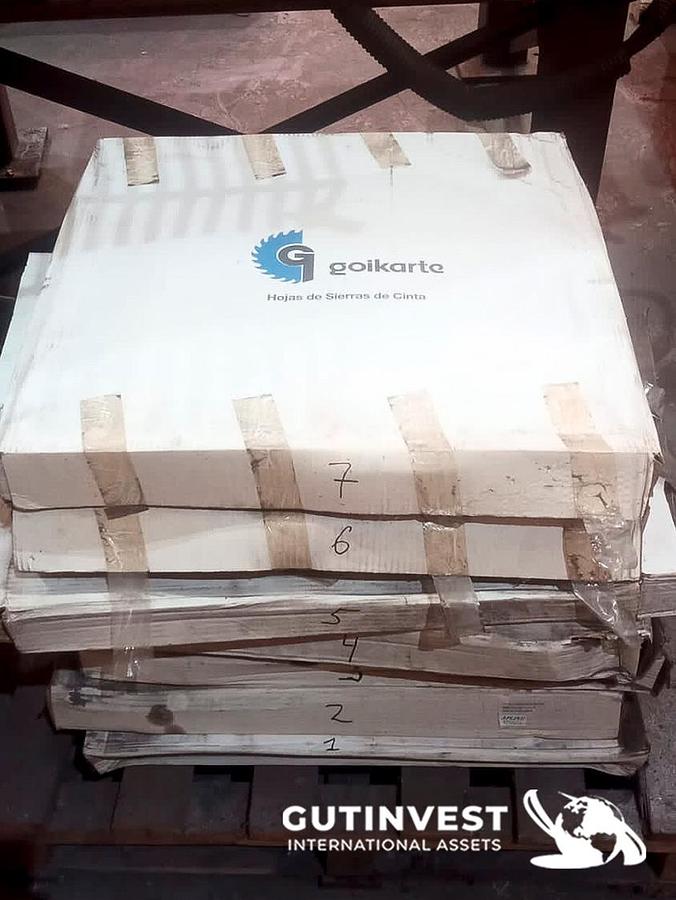

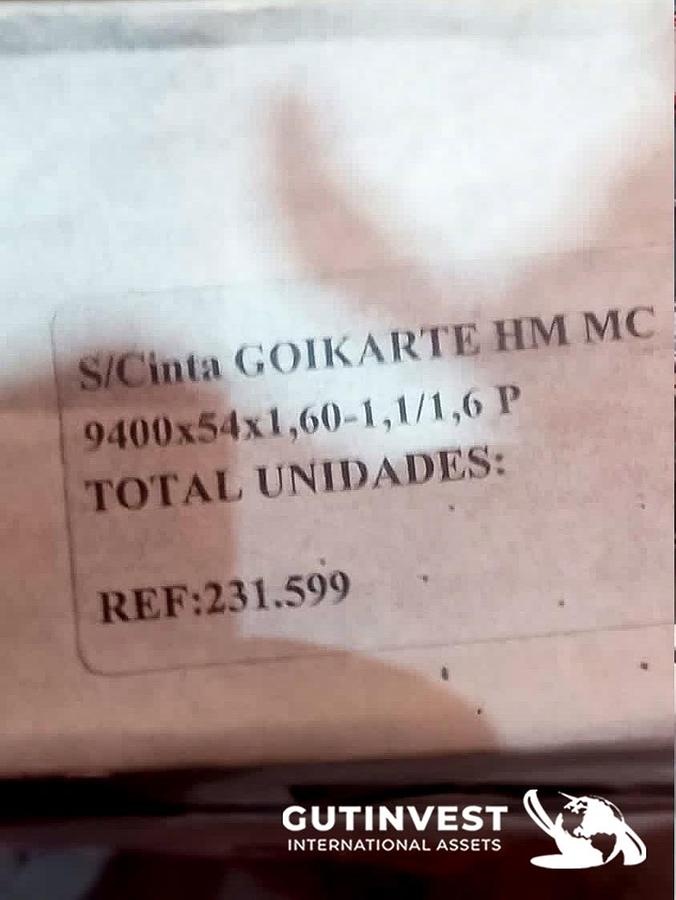

UZAY saw model SY 1010, Semi-automatic double column saw, Distance between centers of the two columns 2250mm, Diameter of the columns 170mm Rectangle 1010 x 1010 mm, Square 1010mm x 1010mm Round at 45º 620mm at 30º 820mm 45º L 500mm 30º L 660mm , Rectangle 45º R 1010 x620mm ,  30º R 1010 x 820mm , 45º L 1010mm x500mm , 30º L 1010mmx660mm, Square 45º R 620mm , 30º R 820mm , 45º L 500mm , 30º L 660mm, Cutting speed 15 to 105m/min (variable by electronic variator), Main motor 4kw, total power 4,5kw, machine with motorized rotation, Jaw height 600mm, jaw length 535 mm, Estimated working height 725mm, Tape dimensions 1.64mm x 54mm x 9400mm, Weight approx. 4500kg
