1 - Cylindrical grinding machine
Sold
1 - Cylindrical grinding machine
Location:
Description

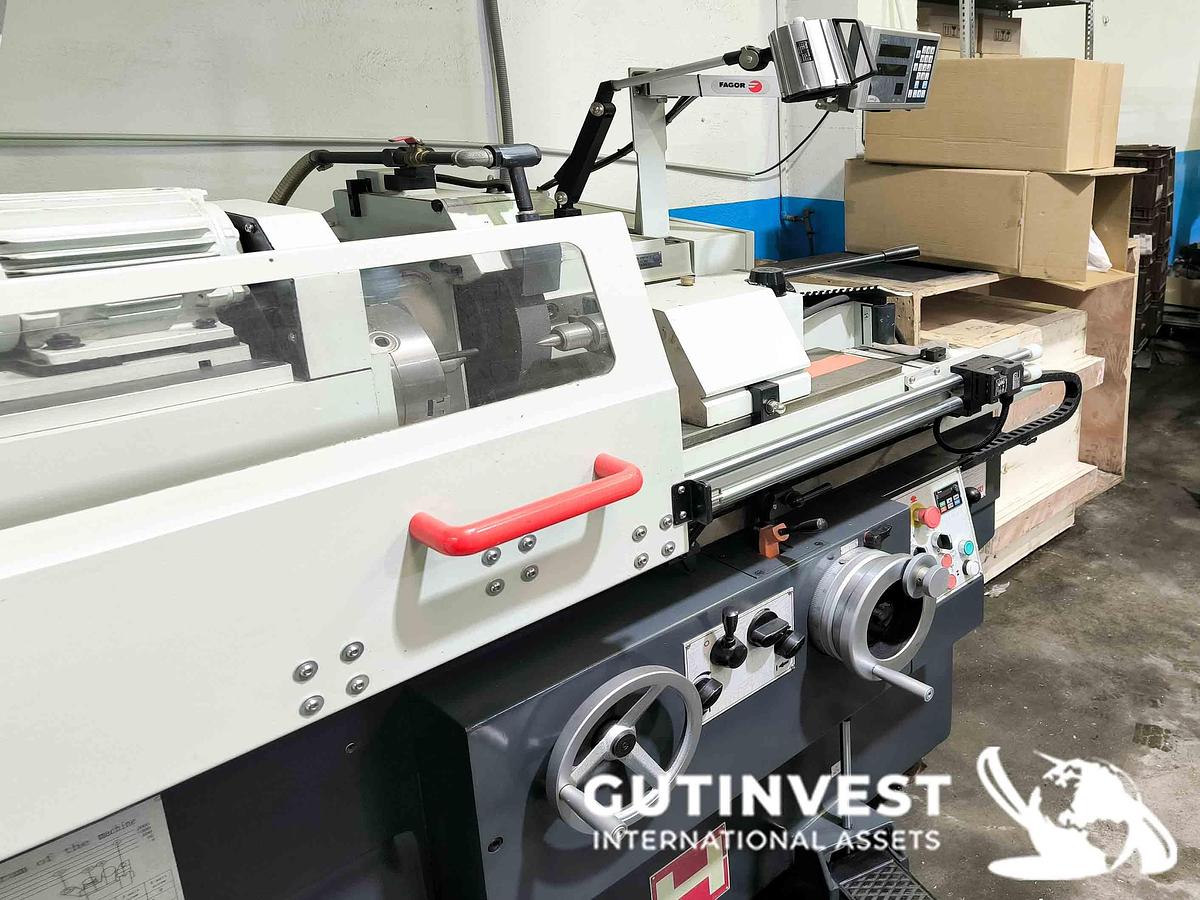

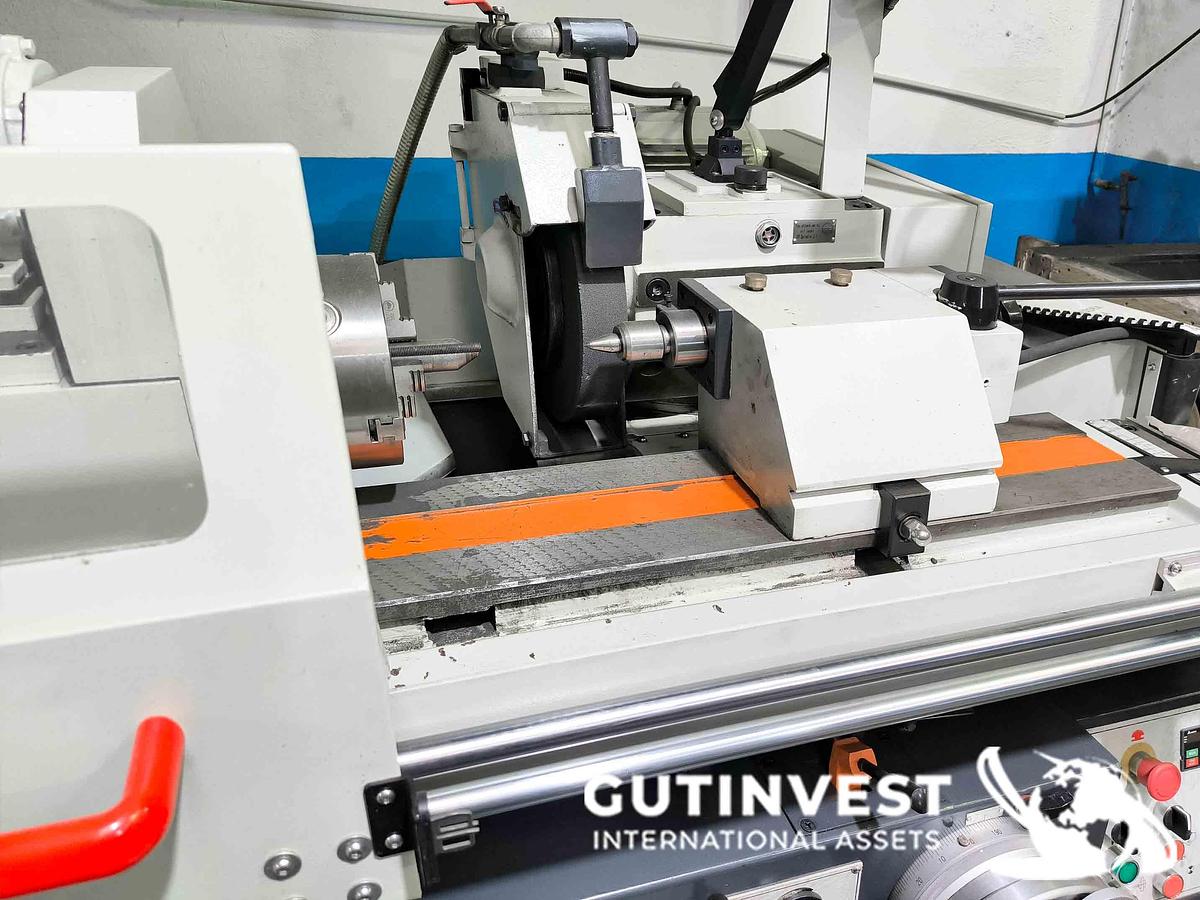

Cylindrical grinding machine.
Center height: 135mm. Grinding diameter: 8-200mm.
Work spindle speeds (1/min): 50 Hz: 25-220.
Working head travel (W-axis): 250mm. Table feeds: 0.1-4 mm/min
Specifications
| Manufacturer | HELLER |
| Model | RCE 500 |
| Year | 2021 |
| Condition | Used |
| Grinding diameter with fixed steady rest | 8-60mm. |
| Maximum grinding length | 500mm. |
| Internal grinding diameter | 35-100mm. |
| Max. internal grinding depth | 125m |
| Plate diameter (front and rear) | 200mm |
| Wheel diameter | 400mm. |
| Tailstock cone | CM4. |
| Dimensions (length x width x height) | 2250 x 1600 x 1500mm. |
| 380V/50Hz. Weight | 2.300Kg |
