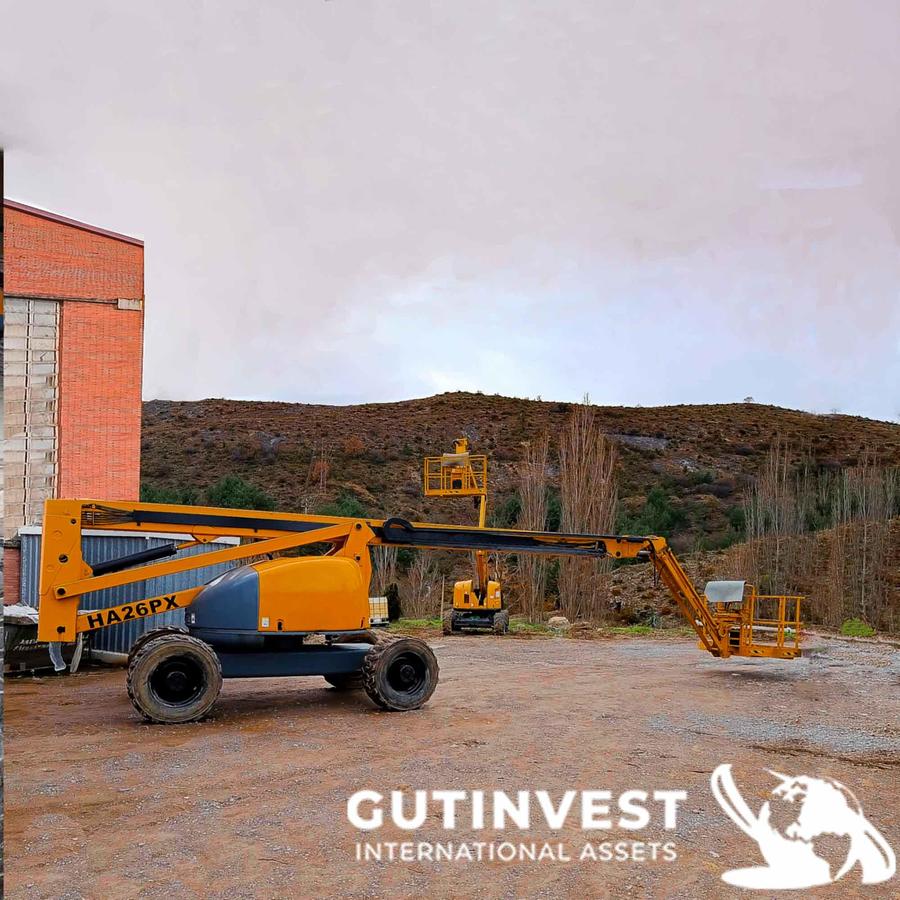

9 - Diesel Articulated Platform

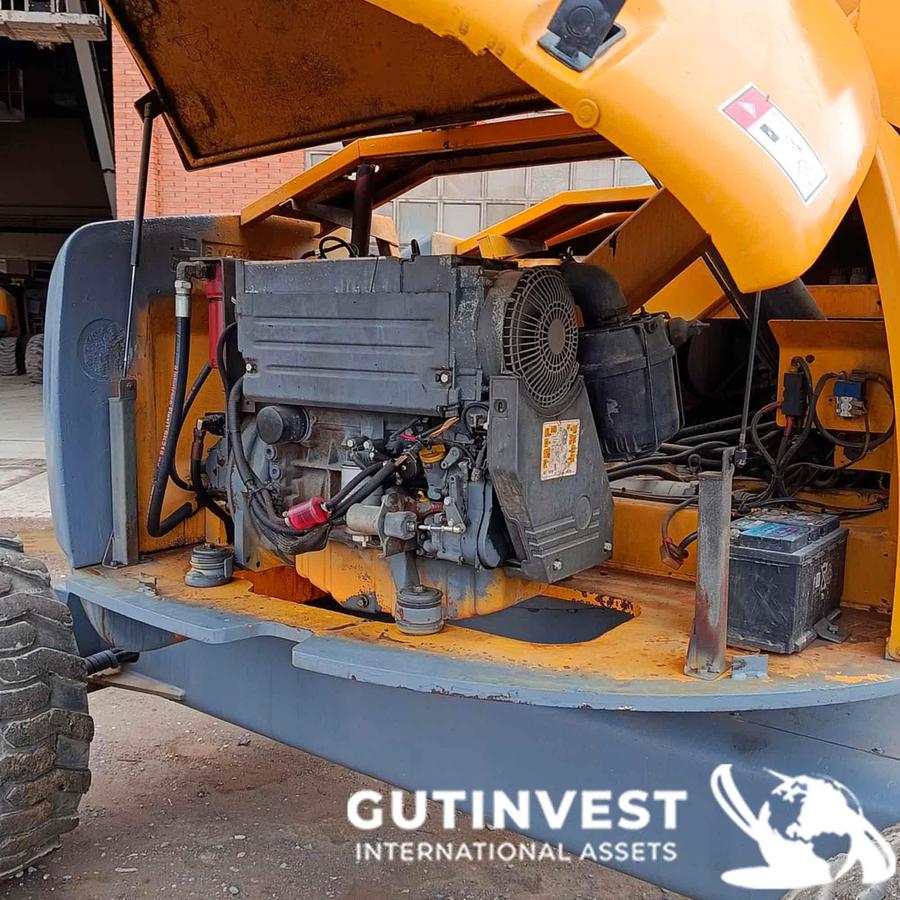

Diesel Articulated Platform Approximate working hours: 6,500 h. Working height: 26 m. Platform height: 24 m. Maximum reach: 14.6 m. Articulation point: 6.8 m. Maximum capacity: 230 kg. Tilt angle: 140º (+70º/-70º). Platform dimensions: 1.8 m x 0.8 m H. Travel speed: 1.2 - 4.5 km/h. Outside turning radius: 3.9 m. Hydraulic turret rotation (continuous): 360º. Hydraulic basket rotation: 180º. Engine: Deutz Diesel F 4 L 1011 F 52 HP - 38 kW. Proportional controls. Maximum gradeability: 40%. Injected tires: 15 R 22. Hydraulic tank: 150 l. Diesel tank: 150 l. Transport length: 9.60 m, Width: 2.35 m. Folded height: 2.67 m. Transport height: 3.1 m. Total weight: 14,150 Kg
